Model |

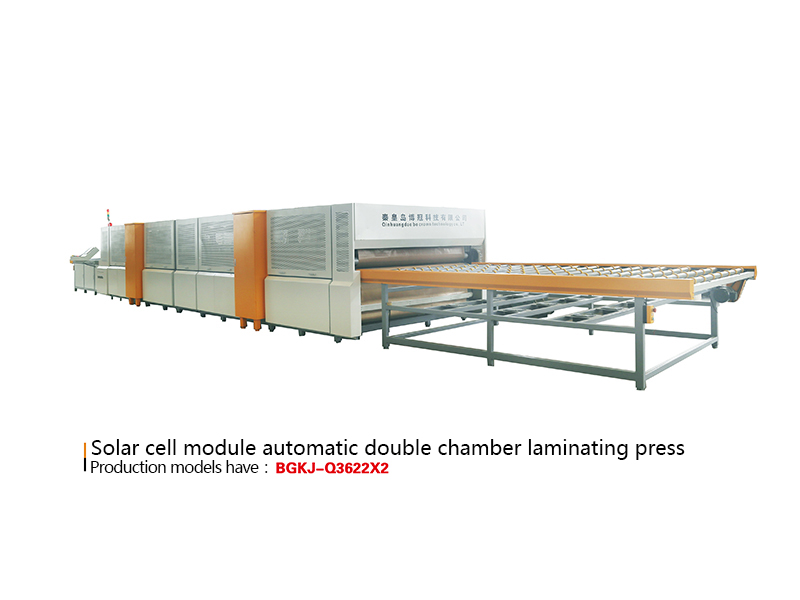

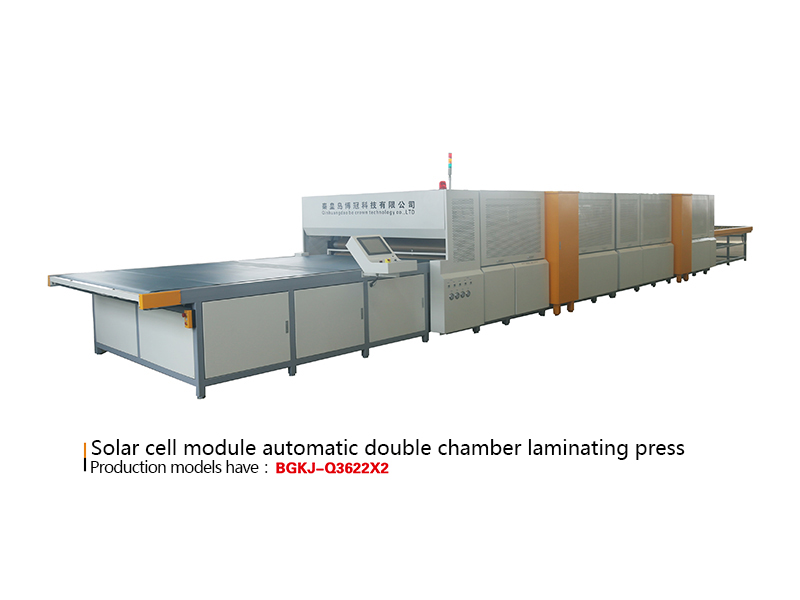

Automatic photovoltaic laminator for solar photovoltaic cell module BGKJ-Q3622X2 |
|||
|
Device parameters
|
Dimensions |
17000×3100×1800（mm） |
Equipment weight approx |
22T |
|
power supply |
AC380V3 phase 5 lines |
Compress air pressure |
0.6～0.8MPa |
|
|
Compressed air flow |
≥400L/min |
Effective lamination area |
(3600X2200)mm2 |
|
|
Laminated chamber height |
25mm |
Installed capacity |
110KW |
|
|
Normal working power |
60KW |
Vacuum pump evacuation rate |
70L/S |
|
|
Control platform |
touch screen |
Heating the maximum temperature |
180℃ |
|
|
Heating platform |
Per square meter unevenness ≤ 200um |
Temperature range |
30℃--180℃ |
|
|
The entire heating platform |
Uneven temperature distribution ≤ ± 1.5 ℃ |
Temperature control accuracy |
±1℃ |
|
|
Use temperature range |
Room temperature ~ 175 ℃ |
Lamination time |
Depending on the material |
|
|
Take time |
5～8min |
Operating vacuum |
100～15Pa |
|
|
Cover the trip |
300mm |
|
|
|
