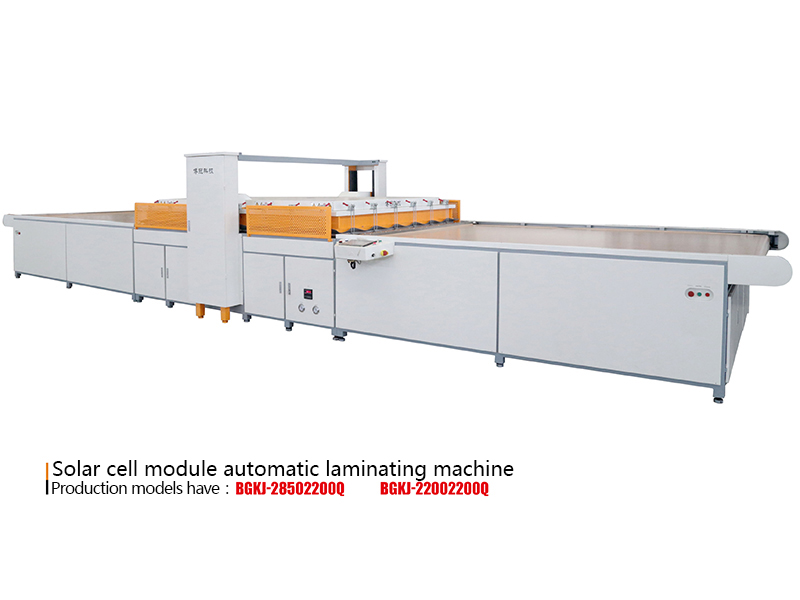

Equipment model |
BGKJ-28502200Q |
Laminated area |
2850*2200 |
|
Dimensions |
10.60m×3.25m×1.9m |
equipment weight |
9.5T |
|
power supply |
AC380V3 phase 5 lines |
Peak power consumption |
48KW |
|
Vacuum pump rate |
100m3/h |
Normal working power consumption |
18KW |
|
control method |
automatic / manual |
Ultimate vacuum |
20Pa |
|
heating method |
SD320 heat transfer oil heating |
Temperature control mode |
Self - tuning intelligent PID control |
|
The highest temperature of the table |
180℃ |
Temperature uniformity |
± 1.5 ℃, multi-point temperature control |
|
Operating temperature range |
Room temperature ~ 165 ℃ |
Temperature controllable accuracy |
≤±1℃ |
|
Equipment model |
BGKJ-22002200Q |
Laminated area |
2200*2200 |
|
Dimensions |
8.6m×3.2m×2m |
equipment weight |
7T |
|
power supply |
380V 3 phase 5 lines |
Peak power consumption |
40KW |
|
Vacuum pump rate |
30L/S |
Normal working power consumption |
16KW |
|
control method |
automatic / manual |
Ultimate vacuum |
20Pa |
|
heating method |
SD320 heat transfer oil heating |
Temperature control mode |
Self - tuning intelligent PID control |
|
The highest temperature of the table |
180℃ |
Temperature uniformity |
± 1.5 ℃, multi-point temperature control |
|
Operating temperature range |
Room temperature ~ 165 ℃ |
Temperature controllable accuracy |
≤±1℃ |
